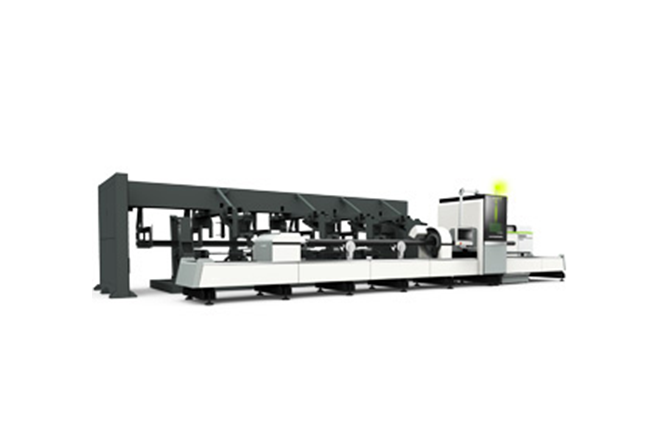

Automatic Loading & Unloading Pipe Laser Cutter
- Warranty : 1 Year for machinery warranty
- Availability : On Stock
- WhatsApp : +86-13295238763
- Wechat : +86-13295238763
- Email : cncitd@minnuo.com
- (your request will be responsed within 1 hour.)
Automatic Loading & Unloading Pipe Laser Cutter description
- Laser Cutting Power Options: 1500W, 2000W, 3000W, 6000W
- Models Available in Various Dimensions: 6m 9m 12m customized
- Suitable Materials for Laser Cutting: carbon steel tube,steel tube,aluminum tube,stainless steel tube
- Pipe Diameter：Φ20-Φ200, square pipe 20-140
- Tube Shape：square and circular tube, 3d tube, round tube, rectangular
- By adding a fully automatic loading and unloading device to the existing laser pipe cutting machine, the entire bundle of pipes can be loaded, eliminating the need for manual sorting. This not only saves labor but also enhances work efficiency.
- The automatic loading and unloading pipe laser cutting machine is a highly precise and reliable cutting equipment that integrates computer control, precision mechanical transmission, and thermal cutting technologies.
- Key features of the automatic feeding device:
- Automated lifting support for receiving materials into baskets.
- Visual scale with adjustable support diameter, allowing quick adjustment based on the pipe diameter.
Parameter
| Field | Value |
| Power Size | 1000w-6000w |
| Maximum Acceleration | 100m/Min |
| X/Y Positioning Accuracy | ±0.05mm/M |
| Operating Voltage | 380V/50Hz |
| X/Y Repetition Is Defined As Precision | ±0.05mm |
| Pipe Feeding Length | 6000mm-12000mm |
| Machine Power | 32KW |
| Bed Frame Length (Mm) | 6m 9m 12m Customizable |
| Machine Operating Temperature | 0℃-40℃ |
| Machine Operating Humidity | <90% |
| Transfer Method | Precision Rack And Pinion |
| Cooling Method | Water Cooling |
| Maximum Cutting Length Of The Pipe | 12000mm |
Composition
Heavy-duty machine bed
The XYZ axis motion mechanism, including the cutting work platform.
Laser Generator
The laser light source is the pivotal component of the CNC laser pipe cutting machine.
Cutting Head
The key components of a CNC laser pipe cutter include the cavity, focusing lens seat, focusing mirror, capacitive sensor, and auxiliary gas nozzle.
Control System
The 5000 Pipe Cutting Bus System supports cutting of square pipes, round pipes, runway types, elliptical pipes, equi-stretching pipes, angle steels, and channel steels. It excels in delivering high precision and efficiency in cutting these materials.

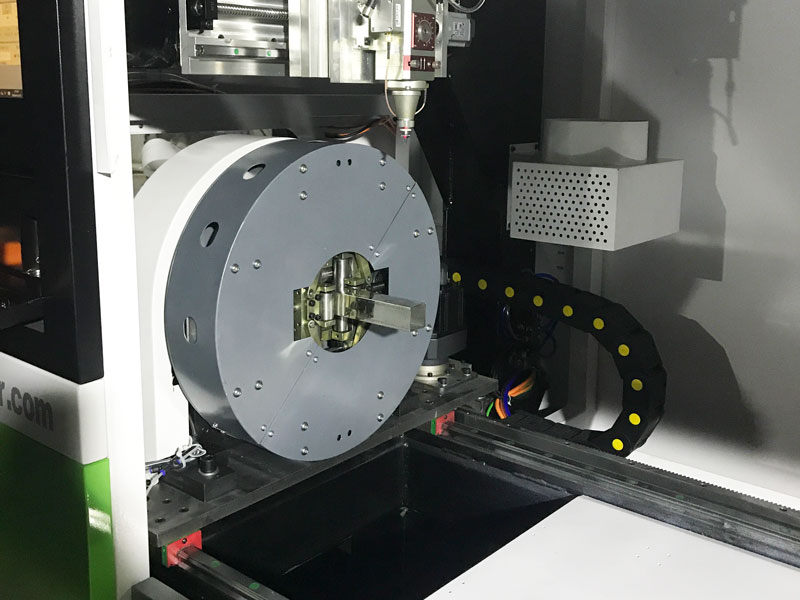

Pipe Chuck
This machine offers precise positioning, high-speed automatic processing, and a well-sealed chuck for enhanced durability. Additionally, users have the option to choose between an electric chuck or a pneumatic chuck.

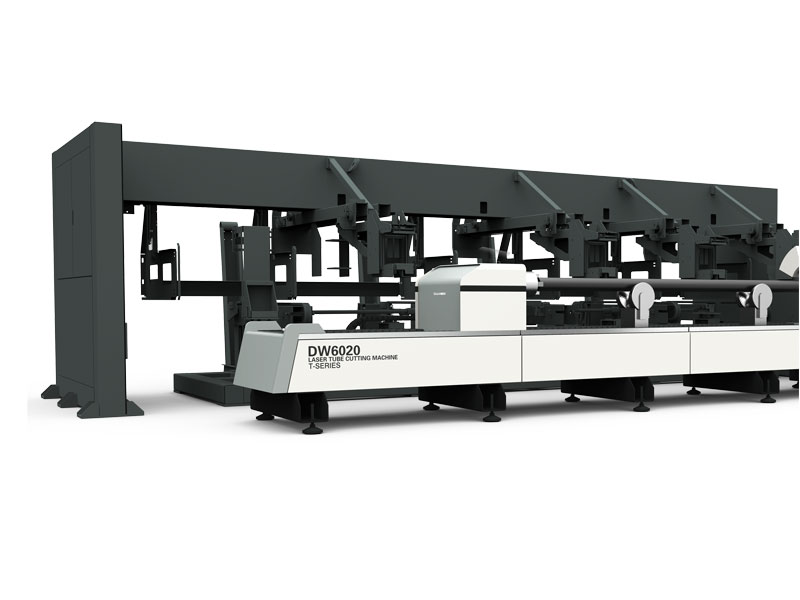

Automatic Loading And Unloading System
The integrated design of the feeding manipulator and chain conveyor in the main body allows for easy debugging and transportation. The unloading device is equipped with a lifting mechanism, which helps save clamping time and reduces pipe shaking.
Cutting Effect
The integrated design of the feeding manipulator and chain conveyor in the main body allows for easy debugging and transportation. The unloading device is equipped with a lifting mechanism, which helps save clamping time and reduces pipe shaking.
