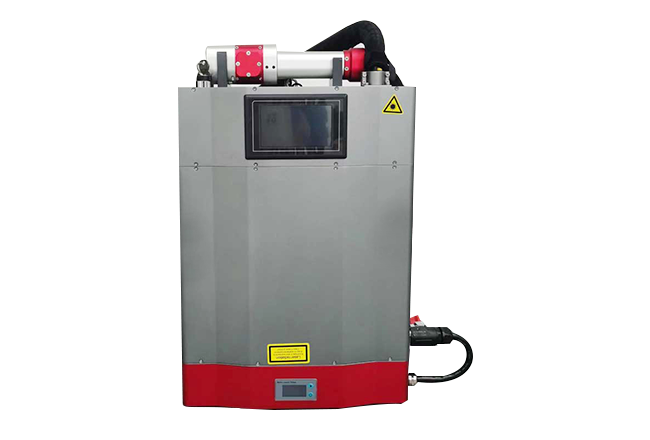

Backpack Laser Cleaner

Power size: 100w 200w 300w 500w
Dimensions: 13.23 x 5.08 x 21.26 inches
Parts: host, optical cable and cleaning head

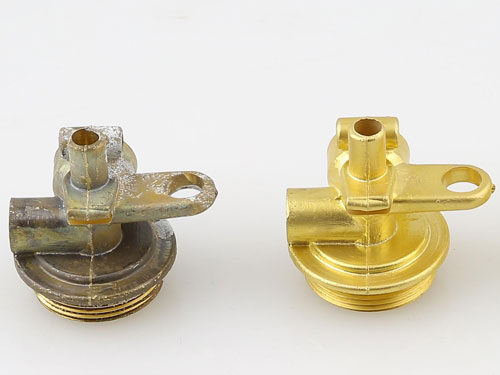

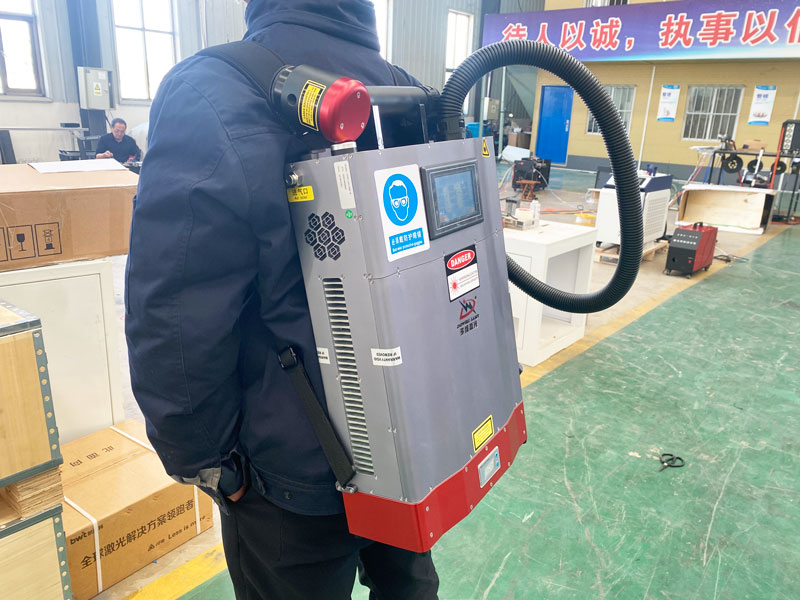

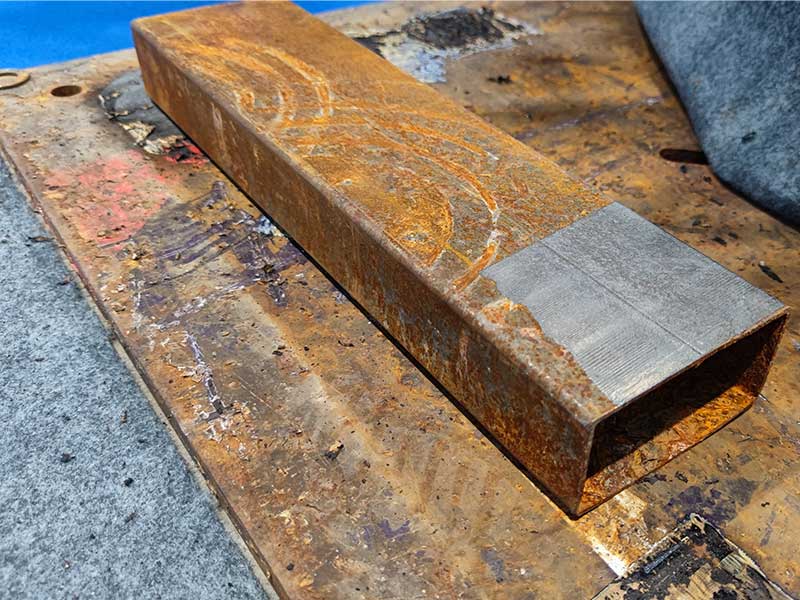

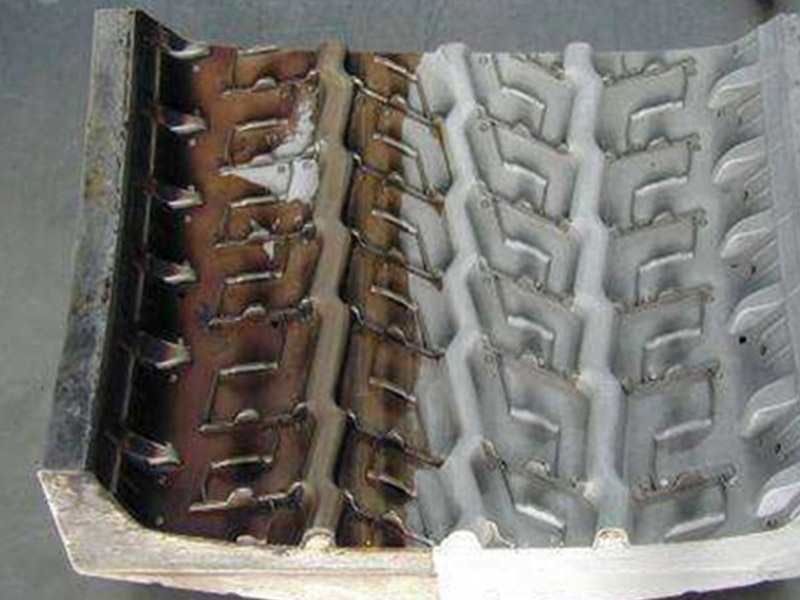

The Backpack fiber laser cleaning machine, also known as a mobile laser cleaning machine, is a portable cleaning equipment. It is designed as a backpack-type device, making it easy to transport and access areas that are difficult to reach with conventional models. The machine is lightweight, portable, and capable of efficiently removing rust, paint, oil, and various other forms of contaminants.

Parameter

Parameter	Value
Model	100W Backpack Laser Cleaning Machine
Supply Voltage	Lithium battery or single-phase 220V±10%; 50/60Hz AC
Average Laser Power	≥100W
Laser Type	Fiber-optic laser
Scanning Range	0-120mm, continuously adjustable; Dual axis supports 7 scanning modes
Working Environment Temperature	5-40 degrees Celsius
Working Environment Humidity	<80%
Fiber Length	3 meters (customizable)
Cooling Method	Air cooling
Laser Working Mode	Pulse
Machine Weight	45kg

Scanning Range: Length and width adjustable from 10-300mm. Dual-axis supports 7 scanning modes.
Scanning Frequency: The highest frequency is not less than 300Hz.
Field Lens Focal Length: 160mm (optional focal lengths: 210mm, 254mm, 330mm, 420mm).
Depth of Focus: Up to 5m.

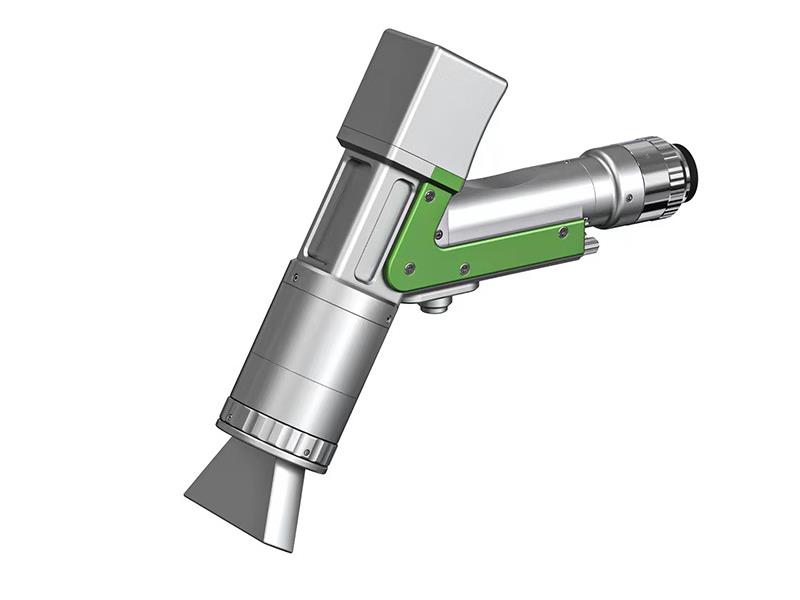

Rust Removal Gun (including isolator): Weight is less than 0.9kg.

Laser Average Power: 100W
Beam Quality (M2): Less than 1.8
Power Adjustment Range (%): 0-100 with adjustable gradient, 1-3000 with adjustable gradient
Operation Mode: Hand-held or automatic

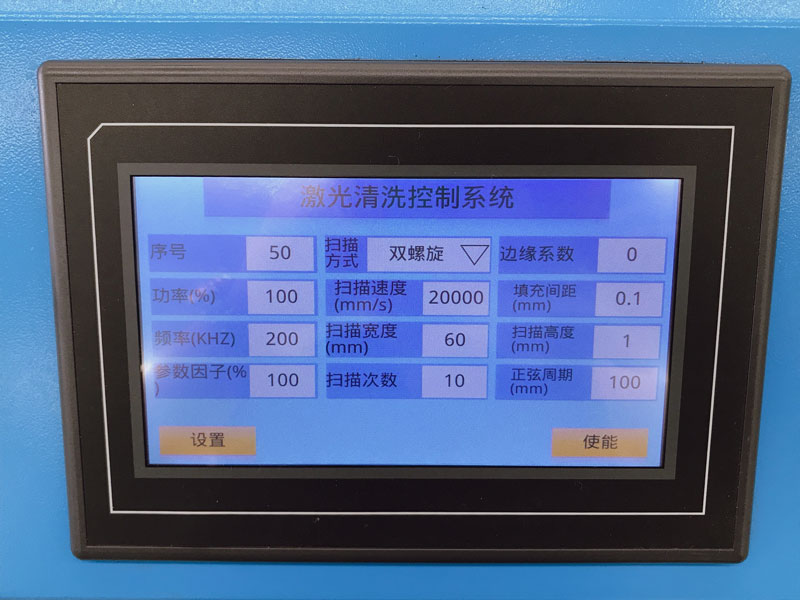

Multi-Language Support: Easy setup with 9 languages available.

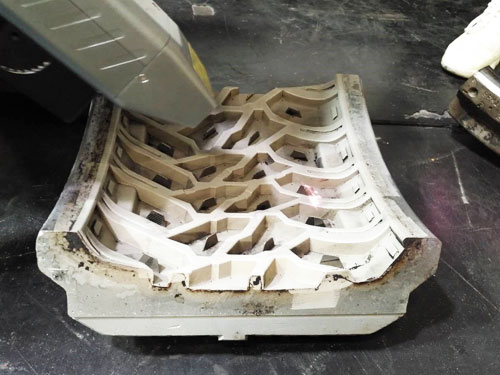

The laser cleaning machine finds application in various areas:
