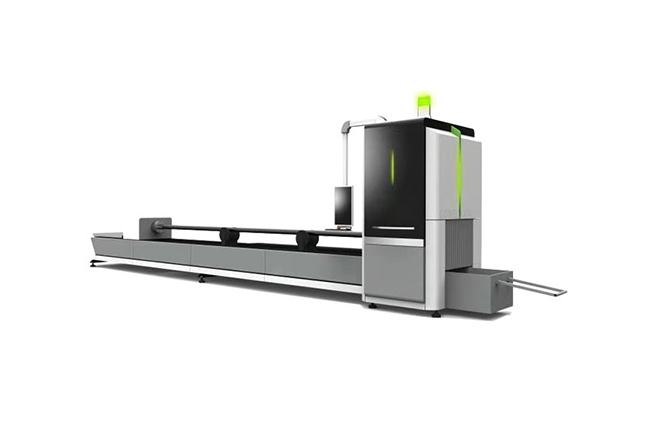

Fiber Laser Tube Cutting Machine
- Warranty : 1 Year for machinery warranty
- Availability : On Stock
- WhatsApp : +86-13295238763
- Wechat : +86-13295238763
- Email : cncitd@minnuo.com
- (your request will be responsed within 1 hour.)
Fiber Laser Tube Cutting Machine description
- Laser Cutting Power Options: 500w 1000w 1500w 2000w 3000w
- Models Available in Various Dimensions: 6m 9m 12m customized
- Suitable Materials for Laser Cutting: carbon steel tube,steel tube,,aluminum tube,stainless steel tube
- Pipe Diameter：20mm tube,200mm round tube customized
- Tube Shape：square tube,rectangle metal tube,metal round tube,circular tube
- The fiber laser tube cutting machine utilizes imported specialized tube cutting software, ensuring user-friendly operation, exceptional precision, and professional performance. It is capable of cutting various types of tubes including round, square, and shaped tubes. Equipped with efficient cutting technology, it optimizes material usage and enhances cutting efficiency effectively.
Parameter
| Parameter | Value |
| Processing area | 6000*2000mm |
| X/Y axis positioning accuracy | 0.05mm/m |
| Acceleration | 0.5G |
| Repeatability | ±0.05mm |
| Maximum empty speed | 60m/min |
| Minimum line width | 0.1mm |
| Input power | 80V/50HZ/100A |
| Chuck size | 165/220/380 (optional) |
| Output Power | 1500w |
| Laser wavelength | 1064nm |
| Workbench load | 0.5G |
| Total power protection level | IP54 |
| Chuck form | Front manual rear linkage or front and rear double |
| Cooling system | Chiller |
| Pipe processing range | Round tube diameter (20-200)*6000mm, square tube (20-150)*6000mm |
Composition
Bed frame made from cast iron
The cast iron bed offers excellent mechanical strength, stability, and vibration resistance. It ensures high cutting precision, integrity, and can withstand high-temperature quenching. The bed remains undistorted and has a long lifespan.

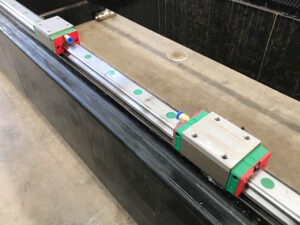

Rail
The product ensures uniform force, enhancing machining accuracy and stability. It boasts a lifespan of up to 10 years.

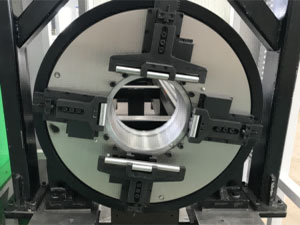

Double pneumatic chuck (four jaws)
Fast speed, time-saving, efficient. Strong pneumatic clamping for accuracy. Special support frame for longevity.
Laser Cutting Head
The brand is globally recognized and renowned, offering a long service life and exceptional stability. It provides excellent cost-performance value.
Control systems
The product features a user-friendly interface, making it easy to operate. It supports various CAD drawing recognition and maintains a stable model. It is a well-known brand in China.
Laser Generator
The product offers an excellent performance-to-price ratio, with a service life of up to 100,000 hours. It delivers exceptional cutting results and exhibits robust stability.
Cutting Effect
The laser pipe cutting machine cuts various metal tubes, including round, square, and special-shaped tubes, as well as angle steel and channel steel. It is suitable for metal pipes, stainless steel pipes, and steel pipes with diameters ranging from 20mm to 200mm. The machine can be customized with different sizes and power options, including 1000W, 1500W, 2000W, and 3000W.
