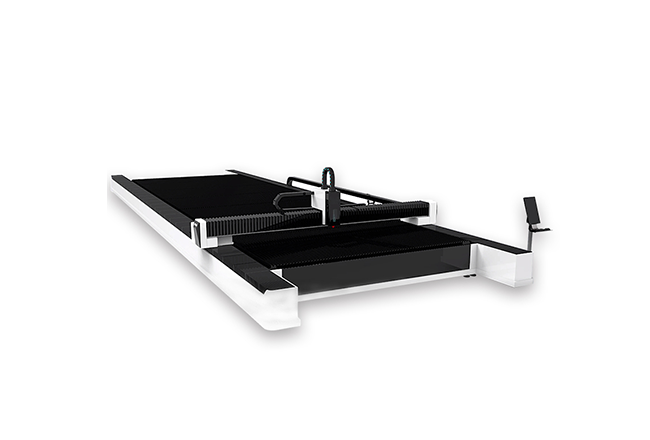

High Power Laser Cutting Machine
- Warranty : 1 Year for machinery warranty
- Availability : On Stock
- WhatsApp : +86-13295238763
- Wechat : +86-13295238763
- Email : cncitd@minnuo.com
- (your request will be responsed within 1 hour.)
High powered laser cutter description
- Laser Cutting Power Options: 12 kW, 15 kW, 20 kW, 30 kW
- Models Available in Various Dimensions: 12025, 14025, 6025, 8025
- Suitable Materials for Laser Cutting: Aluminum Plate, Brass, Carbon Steel
- The high-power fiber laser cutter machine is designed for fiber laser cutting equipment with a power rating of 10,000 watts or higher. It features a full-protection exchange table laser cutting system, making it ideal for high-power fiber lasers above 10,000 watts. With its increased cutting thickness and faster speed, this machine delivers exceptional performance.
- To ensure safety and cleanliness, the machine is equipped with a fully protected protective cover, promoting a clean and hygienic working environment. It also includes glass protective windows to safeguard the operator’s eyes. Furthermore, it incorporates a dust recovery and purification treatment system that is both environmentally friendly and aesthetically pleasing.
- For enhanced productivity, the machine utilizes double exchange platforms and supports automatic loading and unloading processes. This feature not only saves labor but also significantly improves efficiency.
Parameter
| model | 6025 | 8025 | 12025 |
| X-axis | 2530mm | 2530mm | 2530mm |
| Y-axis | 6050mm | 8050mm | 12050mm |
| Z-axis | 170mm | 170mm | 170mm |
| X/Y axis positioning accuracy | ±0.01 | ±0.01 | ±0.01 |
| X/Y axis repeat positioning accuracy | ±0.01 | ±0.01 | ±0.01 |
| Maximum speed | 205m/min | 205m/min | 205m/min |
| Maximum acceleration | 2.0G | 2.8G | 2.8G |
| Total power protection level | IP54 | IP54 | IP54 |
| Available laser power | 10000-30000w | 10000-30000w | 10000-30000w |
| Maximum load of the worktable | 6000kg | 8000kg | 120000kg |
| Equipment power demand | 380VAC/±10%/50HZ | 380VAC/±10%/50HZ | 380VAC/±10%/50HZ |
Composition
Thermal Deformation-Free Cast Iron Bed
The large machine tool is made of flake graphite cast iron with a strong tensile strength of 200MPa. It maintains a stable and precise mechanical structure, ensuring high shock resistance and long-term deformation-free performance for 50 years.
Exchange table with super large format
Ultra-large format workbench for diverse customer needs.
High-power laser cutter beam
Steel welded beams undergo stress-relief annealing and secondary aging treatment for long-term use without deformation. They possess exceptional shock resistance, rigidity, and stability.
Laser Cutting Head
Smoke-free and environmentally friendly cutting area achieved through time-sharing, partitioning, and segmented dust extraction and heating structure.
Control systems
User-friendly interface supports multiple file formats (SVG, PDF, AI) for easy import and enables effective cutting path design, reducing time and improving accuracy. Simple operation and convenient use.
Laser Generator
Highly cost-effective with a long lifespan of up to 100,000 hours. It delivers excellent cutting results and exhibits strong stability.
Cutting Effect
Ideal for cutting various metal materials including carbon steel plates (25mm, 30mm, 35mm, 50mm+), stainless steel plates (25mm), galvanized plates, electrolytic plates, aluminum alloy (20mm), brass (12mm), copper, and more.
