Minnuo is China Leading Manufacturer of Industrial Machinery with 30+ Years Experience.
- Max swing over bed ：φ400-φ830
- Max swing over slide：φ220-φ580
- Max workpiece length：700-3900mm
- Spindle motor：7.5/11KW

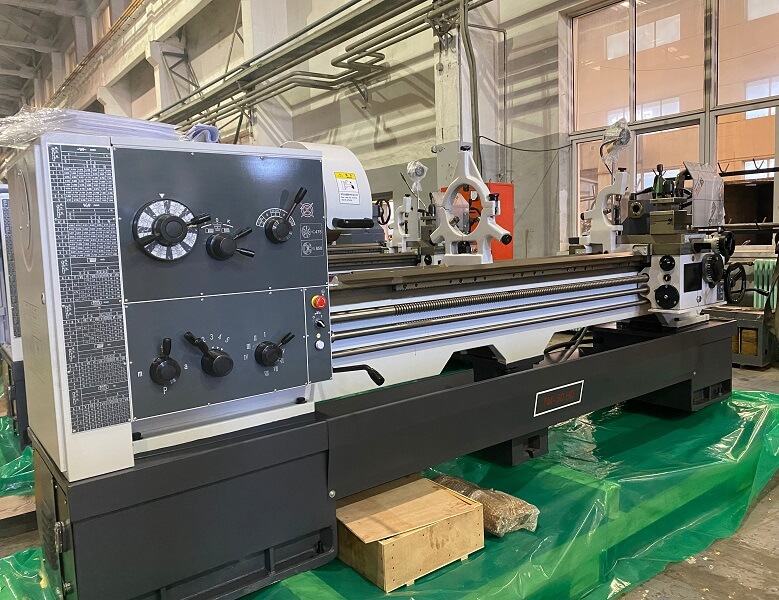

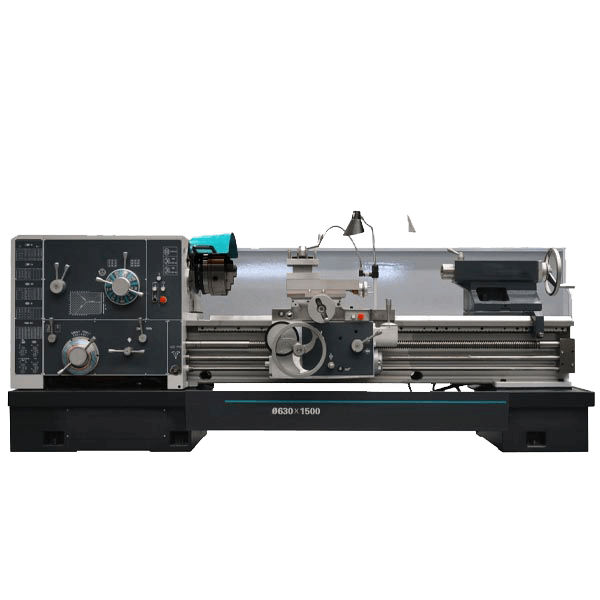

Conventional Engine Lathe
Minnuo Machine specializes in manufacturing various small, light, and heavy-duty manual lathe machines, utilizing high-rigidity castings and widened guide rails to enhance the precision and stability of the machine tools.
Our engine lathes are well-suited for a wide range of turning tasks, including machining internal and external cylindrical surfaces, conical surfaces, and other rotary and end faces. These manual lathe machines are capable of processing various common thread types such as metric, imperial, module, and pitch threads, as well as carrying out drilling, tapping, threading, and cutting tasks.
Our lathes combine durability with precision, ensuring top-notch performance for your machining needs. Interested in our lathe machine prices? We offer free technical support to help you select the right manual lathe machine. Contact us today to learn more about our competitive offerings and receive a personalized quote.
- The spindle through-hole can accommodate bar stocks of different diameters.
- Both the Inch and Metric systems cater to users from countries with different measurement systems.
- The option to choose between hand and foot brakes.
- Various voltage options (220V, 380V, 420V) and frequencies (50Hz, 60Hz) are available for selection.
Lorem ipsum dolor sit amet, consectetur adipiscing elit.

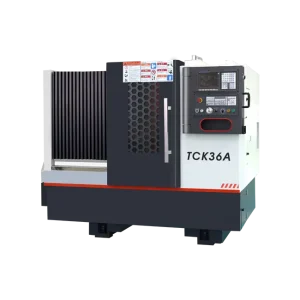

TCK36A
Slant bed linear guide way CNC lathe
- Chuck size( inch)：6
- Max, swing dia. over bed：360mm
- Max. work piece length：300mm
- Spindle power/speed: 5.5KW/50-4000rpm
TCK40
Slant bed linear guide way CNC lathe
- Chuck size( inch)：8
- Max, swing dia. over bed：400mm
- Max. work piece length：400mm
- Spindle power/speed: 5.5KW/50-4000rpm

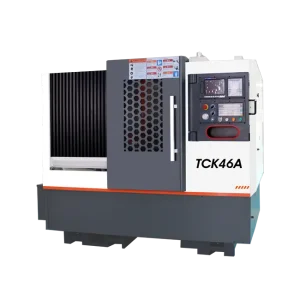

TCK46A
Slant bed linear guide way CNC lathe
- Chuck size( inch)：8
- Max, swing dia. over bed：460mm
- Max. work piece length：350mm
- Spindle power/speed: 7.5KW/50-3500rpm

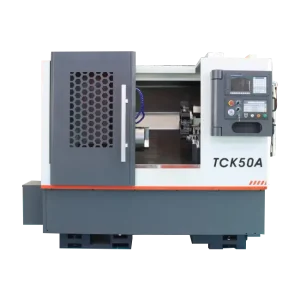

TCK50A
Slant bed linear guide way CNC lathe
- Chuck size( inch)：10
- Max, swing dia. over bed：560mm
- Max. work piece length：350/500/800/1250mm
- Spindle power/speed: 11/15KW/0-3000rpm
TCK56A
Slant bed linear guide way CNC lathe
- Chuck size( inch)：8
- Max, swing dia. over bed：560mm
- Max. work piece length：500/950mm
- Spindle power/speed: 11KW/50-3500rpm

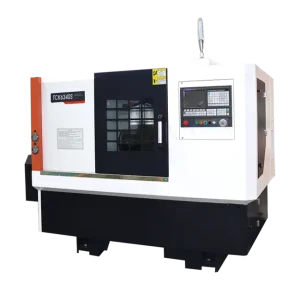

TCK6340
Slant bed linear guide way CNC lathe
- Chuck size( inch)：6/8
- Max, swing dia. over bed：400mm
- Max. work piece length：180mm
- Spindle power/speed: 5.5KW/50-3500rpm
TCK6340S
Slant bed linear guide way CNC lathe
- Chuck size( inch)：6/8
- Max, swing dia. over bed：400mm
- Max. work piece length：390/300mm
- Spindle power/speed: 5.5KW/50-3500rpm

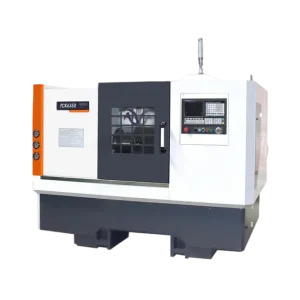

TCK6350
Slant bed linear guide way CNC lathe
- Chuck size( inch)：10
- Max, swing dia. over bed：520mm
- Max. work piece length：410/330mm
- Spindle power/speed: 7.5KW/50-3000rpm
Minnuo Manual Lathe Machine: Quality in Every Detail
Metal Chuck
Three-jaw/four-jaw chucks can be assembled according to customer requirements for lathe models.
High Precision Screw
Good wear resistance and accuracy retention, ensuring a long service life of the machine.
Quenched Tailstock
The tailstock sleeve is treated with high-frequency quenching and carefully ground to prevent wear and tear.
Lathe Body
Hardened-tempered casting body makes high rigidity, high precision, and long Life.
Four-station Tool Holder
Four-station tool holder can be operated with one hand, and tool holder protection is optional.
Spindle HeadBox
Strictly Processed Hardened-Tempered casting gears make the spindle head box perform precisely.
2 Axis DRO
2 Axis Digital Read Out is available as an option.
Fast moving device
Quick advance and retreat of sliding carriage box.
Best selling models recommended
Low cost, high quality machines preferred by most customers
- Maximum turning diameter on the bed:Φ660
- Maximum diameter of rotation on transverse carriage:Φ430
- Max. Length of workpiece:750/1000/2000/3000 mm

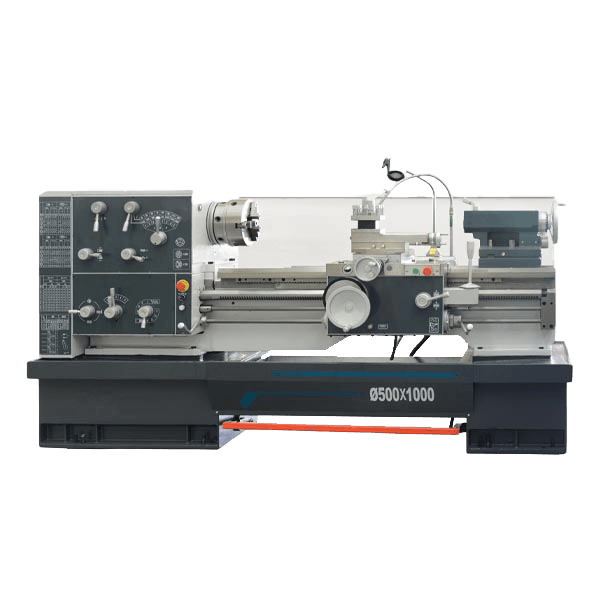

- Maximum turning diameter on the bed:Φ500
- Maximum diameter of rotation on transverse carriage:Φ290
- Max. Length of workpiece:1000/1500/2000/3000 mm
- Maximum turning diameter on the bed:Φ800
- Maximum diameter of rotation on transverse carriage:Φ480
- Max. Length of workpiece:1000/1500/3000/5000/6000 mm

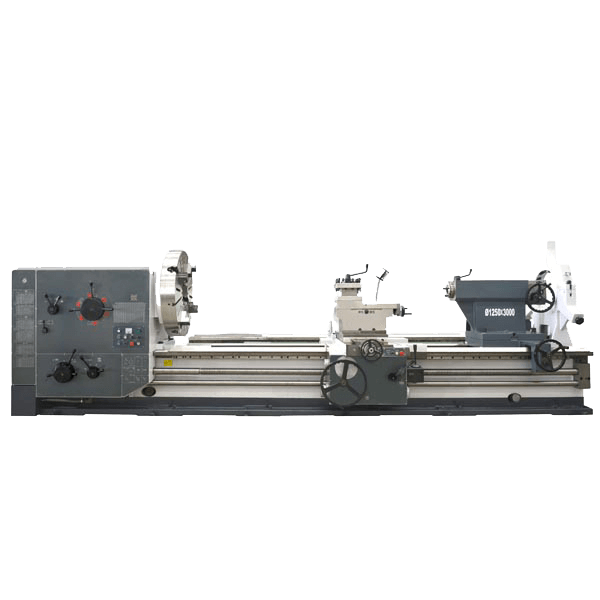

- Maximum turning diameter on the bed:Φ1250
- Maximum diameter of rotation on transverse carriage:Φ880
- Max. Length of workpiece:1500/4000/5000/6000/8000 mm
Made in China, all in accordance with ISO 9001 standards
30 years of experience in the manufacture of metal processing equipment
Check out our production strength
Standardized management, precision machining machine
Manufacturing base
JIANGSU Production department One
Manufacturing base
SHANDONG Production department Two
Manufacturing base
ANHUI Production department Three
Manufacturing base
ZHEJAING Production department Four
Digital factory
Assembly shop
Digital factory
Gantry assembly workshop
Digital factory
Patterned production
Digital factory
Spray shop
Machine processing equipment
Five axis linkage machining center
Machine processing equipment
CNC gantry machining center
Machine processing equipment
Pentahedral machining center
Machine processing equipment
Flexible machining center
Choosing the type of machine you want
To select the type of machine tool that meets your requirements, you can consider the following aspects:
- What materials will you be working with? (e.g., metals, plastics)
This helps determine the appropriate cutting tools and machine specifications needed.
- What are the maximum and minimum sizes of workpieces? (e.g., diameter, length)
- What level of precision and tolerance do you require?
- What specific operations do you need the lathe to perform? For example, turning, threading, drilling, or knurling.
- Are there any specific features or attachments you require, such as a digital readout, variable speed control, or specialized chucks? (e.g., variable speeds, digital readout)
- What is your budget for the lathe?
- Do you need any specific after-sales support or service, such as maintenance, training, or warranty coverage?
This ensures the lathe can accommodate your requirements.
This will help in selecting a lathe with the appropriate accuracy and control features.
This will help in choosing a lathe with the necessary capabilities and features.
cost
Shipping and Receiving Support, etc.
An after-sales service that will definitely matter to you
GUARANTEE
1 year warranty for the equipment and 3 years warranty for the system
GUIDE
Free lifetime technical advice 24 hours a day, 7 days a week
TURNKEY SERVICE
Order more than ten units and get complete on-site service from our engineers.
