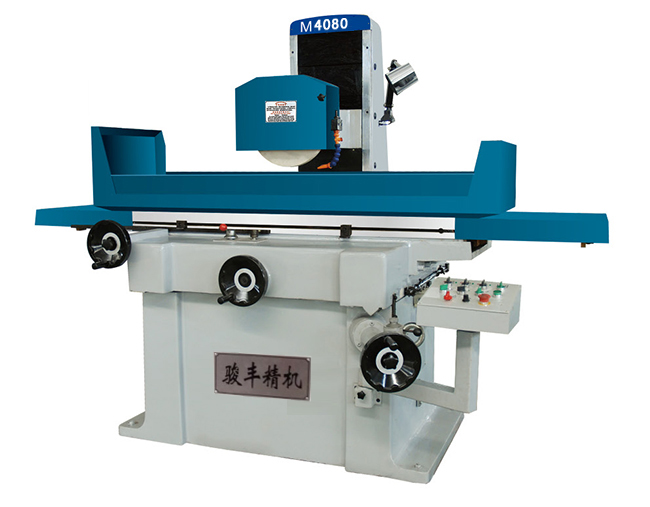

MDY4080 Horizontal Spindle Rectangular Table Hydraulic Surface Grinding Machine
- Warranty : 1 Year for machinery warranty
- Availability : On Stock
- WhatsApp : +86-13295238763
- Wechat : +86-13295238763
- Email : cncitd@minnuo.com
- (your request will be responsed within 1 hour.)
Parameter
| Technical Specifications | Unit | MDY4080 |
| Worktable Table Size (width × length) | mm | 400*800 |
| Worktable Maximum Grinding Size (width × length × height) | mm | 420*820*420 |
| Worktable Table's Maximum Longitudinal Stroke | mm | 820 |
| Worktable Table T-slot (Slot Count × Slot Width) | mm | 3*18 |
| Grinding Head Maximum Distance from Grinding Wheel Axis Centerline to Table Surface | mm | 580 |
| Lateral Feed Handwheel Feed Amount Handwheel Per Turn | mm | 2.5 |
| Lateral Feed Handwheel Feed Amount Handwheel Per Division | mm | 0.02 |
| Feed Amount Per Feed | mm | 0.02/grid, 2.5/circle |
| Feed Amount Per Feed Maximum | mm | 0.07 |
| Feed Amount Per Feed Minimum | mm | 0.01 |
| Hydraulic System Main Spindle Motor | KW | 5.5 |
| Hydraulic System Operating Pressure | Mpa | 3 |
| Hydraulic System Tank Capacity | L | 90 |
| Grinding Wheel Grinding Wheel Speed | r/min | 1450 |
| Grinding Wheel Grinding Wheel Size (outer diameter × width × inner hole) | mm | ⊙350*32*⊙127 |
| Working Precision Parallelism of Machining Surface to Base Surface | mm | 300：:0.005 |
| Working Precision Surface Roughness | um | Ra0.63 |
| Machine Tool Weight Net Weight | kg | 3000 |
| Machine Tool Weight Gross Weight | kg | 3300 |
| Machine Dimensions (length × width × height) | mm | 2260*1790*19 |
| Packing Box Size (length × width × height) | mm | 2400*1990*2180 |
