Intelligent Flexible Bending Center

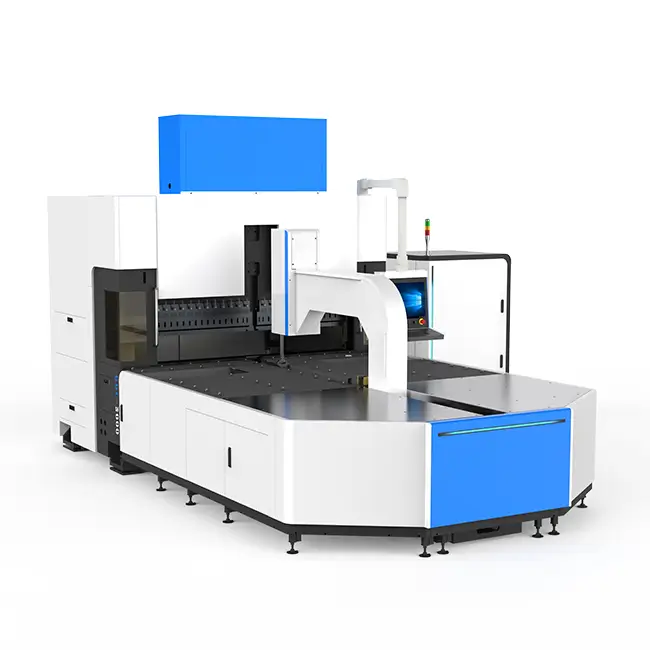

Intelligent Flexible Bending Center is the new generation automated bending solutions, a benchmark that indicates the upgrading to automation of sheet metal fabricating industry. It can obviously reduce the labor cost and at the same time it can realize 300% higher efficiency comparing to traditional press brake up to 0.3s per bending. Full electro servo transmission plus closed-loop BUS control makes the accuracy far better.

Technical Specifications

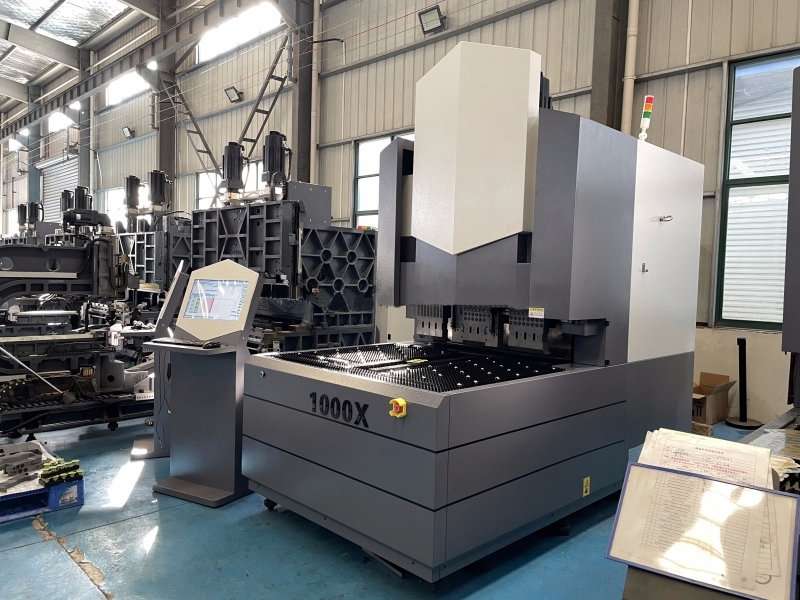

Model	1000X Series	1400X Series	2000P Series	2500P Series
Fastest bending speed	0.2s/time	0.2s/time	0.2s/time	0.2s/time
Maximum bending width	1000mm	1400mm	2000mm	2500mm
Bending height	170 mm	170 mm	170 mm	170 mm
Rated voltage	380V	380V	380V	380V
Average power	1.1KW	1.5KW	2.5KW	2.9KW
Noise	50 dB	50 dB	50 dB	50 dB
Total mass	7 tons	10 tons	18 tons	22 tons
Maximum bending thickness (Standard )	UTS 410N/mm2 cold plate 1.2mm	UTS 410N/mm2 cold plate 1.2mm	UTS 410N/mm2 cold plate 1.5mm	UTS 410N/mm2 cold plate 1.2mm
Minimum material thickness	0.35mm	0.35mm	0.35mm	0.35mm
Minimum inner size of four-side forming	140mm*210mm	140mm*210mm	140mm*190mm	140mm*190mm
Minimum inner size of bilateral forming	140mm	140mm	140mm	140mm
Maximum bending size	1000mm*1000mm	1400mm*1400mm	2000mm*1250mm	2500mm*1500mm
Number of axes	Standard 9-axis concurrent linkage	Standard 9-axis concurrent linkage	Standard 13-axis concurrent linkage	Standard 15-axis concurrent linkage

Composition

Contain

Advanced instruction
Arc command
Three-axis automatic positioning function
Plate error-proof detection
Double C-axis automatic follow
Oil supply self-lubricating system
Thickness detection
Partial load detection
Automation components (open interface)
High-speed console
Pleated edge (cold plate shall not exceed 1.0mm)
Hand wheel
Advanced instruction

FEATURE-MULTI POSITIONING WAYS

The frame is welded by carbon dioxide shielded welding, which has many advantages such as stable welding process, no internal defects, and minimal spatter.

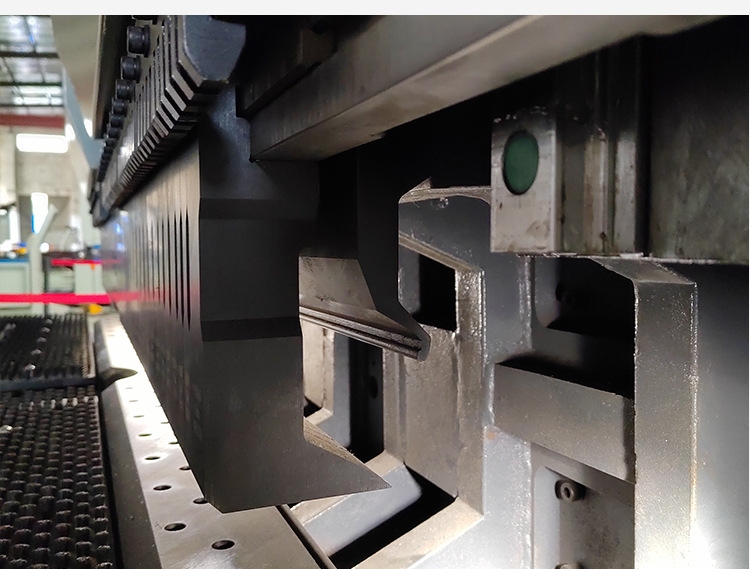

FEATURE-AUTOMATIC CORRECTION OF ROTATION ANGLE

The arc bending process requires repeated bending of the plate. If the rotation angle is not in place, the bending error will accumulate each time, resulting in the folded workpiece is not an arc, but a cone.

The automatic correction function can automatically adjust the C/C11 axis to compensate for sheet rotation errors.

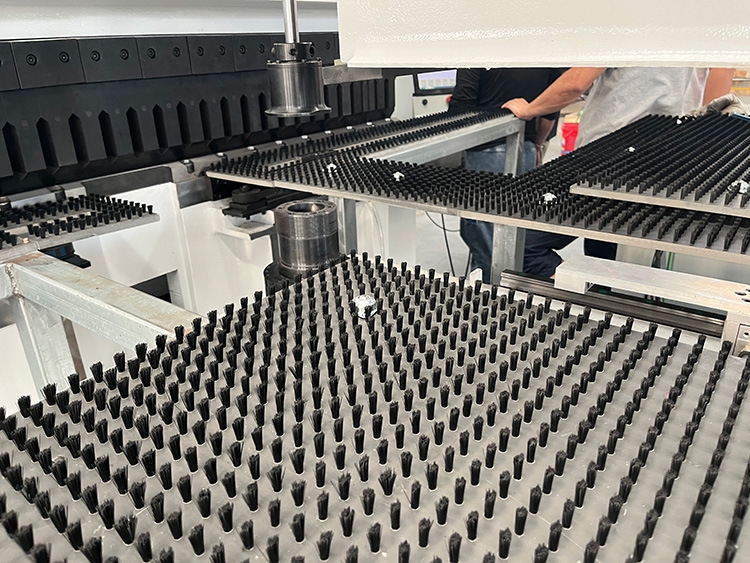

CNC AXES-11 AXES

A/B axes: Positioning axes V axis: Feeding axis C/C11 axes: Rotation axes W/W11 axes: Pressing axes Z/Z11 axes: Tooling up&down motion axes Y/Y11axes : Tooling forward&dbackward motion axes

Frame

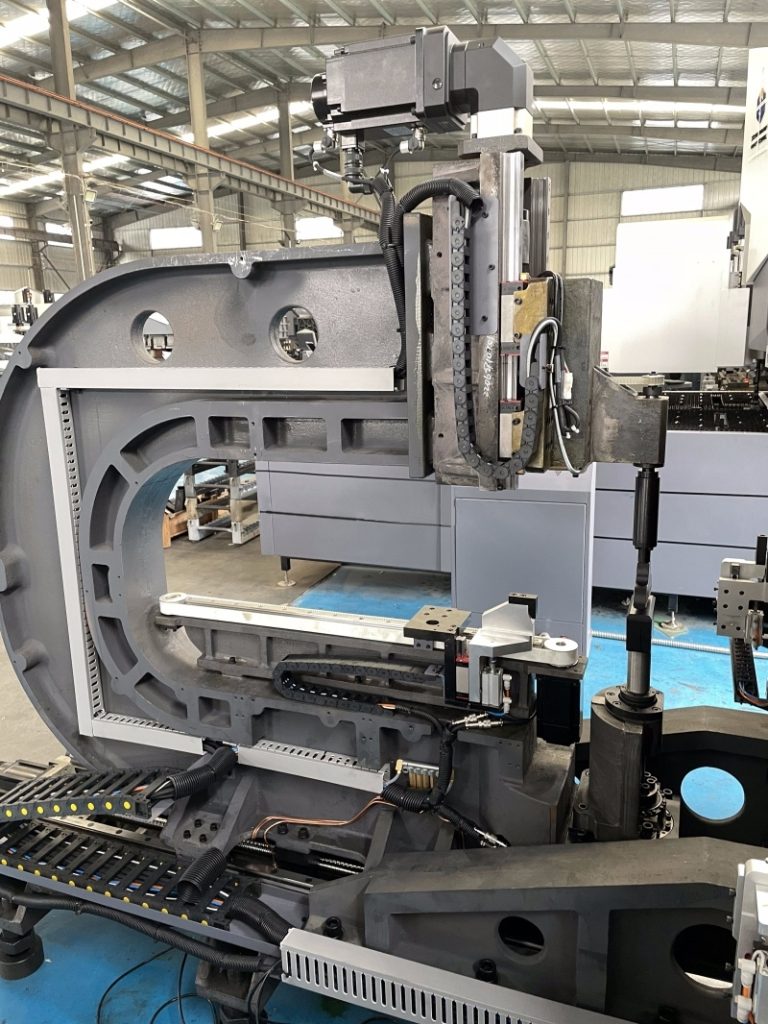

In view of the high-intensity motion requirements of the panel bender, the frame adopts an arch design, which is thickened and widened.

The frame is tempered, annealed and aged twice to ensure the long-term running accuracy, stability and high rigidity of the machine.

Control System

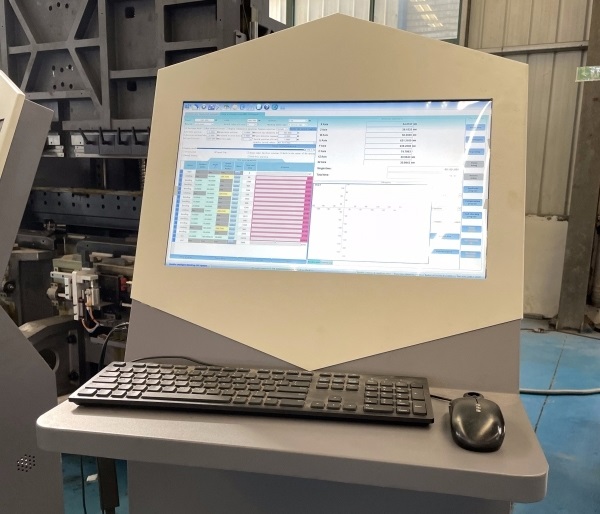

Taiwan SYNTEC 15-axis + linkage full-servo CNC system

Effects

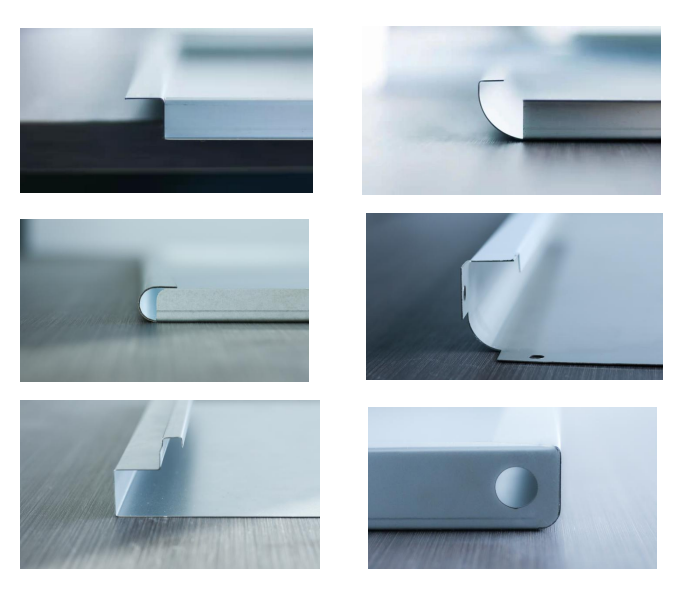

Easily realize the arc, press dead edge, back shape, closed shape and other complex sheet metal bending requirements. The flexible bending center can be widely used in the field of steel cabinet shells (file cabinets, tool cabinets, outer shields, electrical cabinets, communication cabinets, gas cabinets, water meter cabinets…), kitchen utensils (refrigerators, air conditioners, stoves…) , Furniture, ventilation, refrigeration, purification, door industry, decoration, elevator and other related metal forming fields
