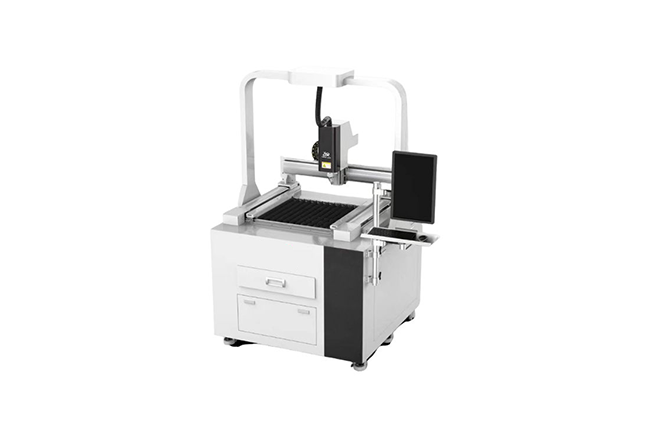

Precision Laser Cutting Machine
- Warranty : 1 Year for machinery warranty
- Availability : On Stock
- WhatsApp : +86-13295238763
- Wechat : +86-13295238763
- Email : cncitd@minnuo.com
- (your request will be responsed within 1 hour.)
Precision Laser Cutting Machine description
- Laser Cutting Power Options: 1000w-3000w
- Model: 1390 / 3030 / 6060 / 9060
- The small format high precision laser cutting machine, also known as compact flatbed laser cutting machine or precision fiber laser cutting machine, is specifically designed for metal cutting. It offers a relatively small cutting format, typically available in sizes such as 1390, 3030, 6060, or 9060.
- This high-precision laser cutting machine delivers exceptional cutting accuracy, ensuring precise results. It is highly efficient, cost-effective, and user-friendly, making it a popular choice for various applications.
Parameter
| Parameter | Value |
| Power Size | 1000w/1500w/2000w/3000w |
| Cutting Slit Width | Up to 0.15nm (depending on power and material) |
| X/Y Axis Positioning Accuracy | ±0.03mm/M |
| Compatible Files | CAD or CorelDRAW output DXF format files |
| Air Supply Conditions | <1.5mpa ≤ C 2.5m |
| Wavelength | 1080nm±5nm |
| Rotation Method | Precision Rack and Double Drive |
| Cutting Thickness | Up to 5mm stainless steel |
| Acceleration | 1.2G |
| Electricity Demand | 220V or 380V/50hz |
| Use Environment | Indoors below 35°C, dry environment without water, oil, and dust, ventilated |
| Laser Cutting Machine Small Size | 13090cm / 3030cm / 6060cm / 9060cm |
Composition

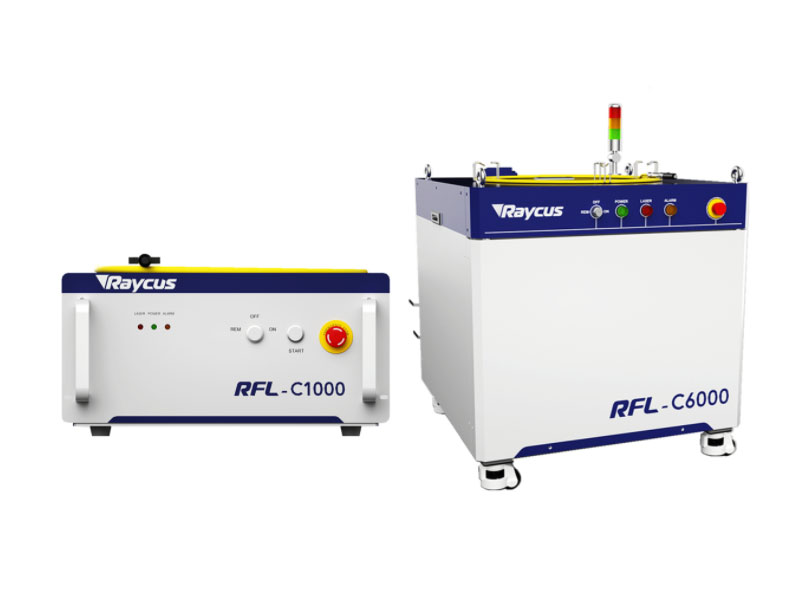

Laser Source
Laser processing offers significant benefits, including wide processing capabilities, minimal deformation, high precision, low energy consumption, non-contact operation, and automation. It is increasingly replacing traditional processing methods and finds extensive applications in cutting, welding, marking, engraving, surface treatment, and 3D printing, among other fields.

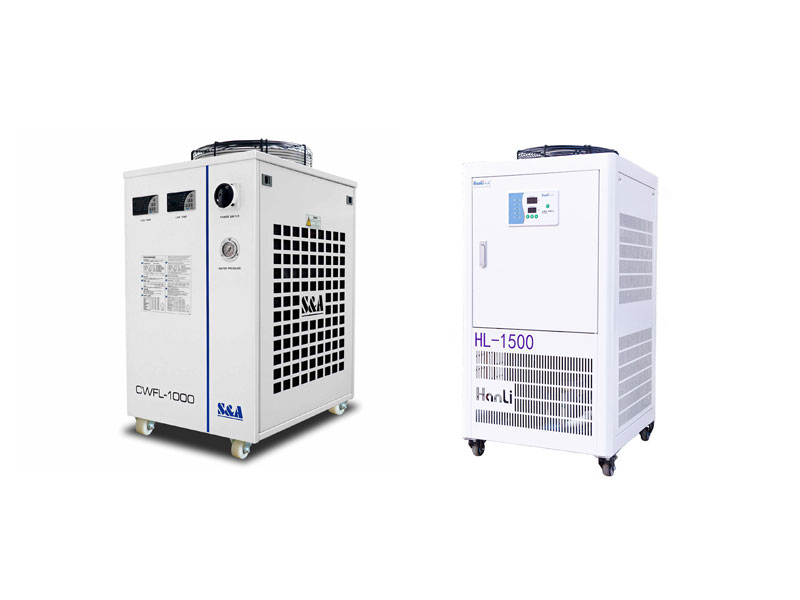

Water Chiller
A chiller is a vital cooling device in industrial production, ensuring constant temperature, flow, and pressure. It plays a crucial role in processes that require cooling.

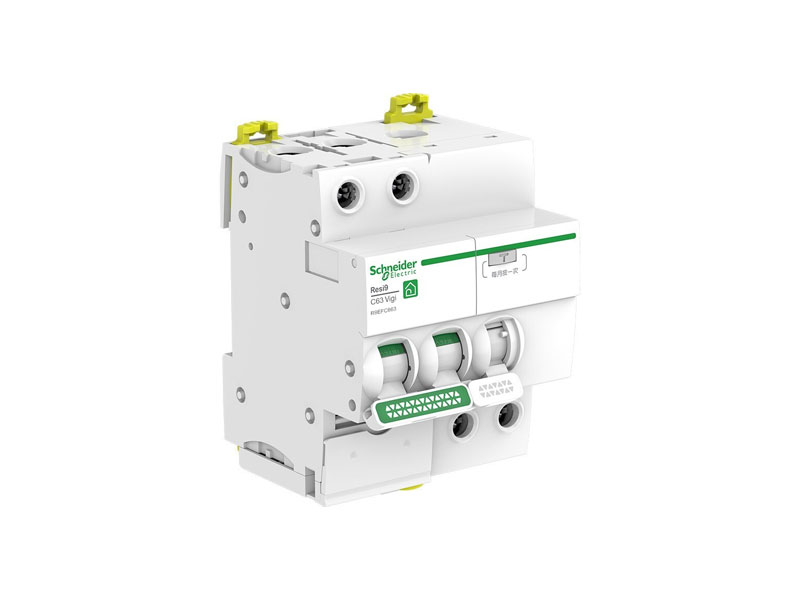

Electrical Part
When a circuit experiences a short circuit, the circuit breaker promptly disconnects the power supply, safeguarding the circuit. In the event of an electric shock, the circuit breaker immediately cuts off the power supply, ensuring safety.

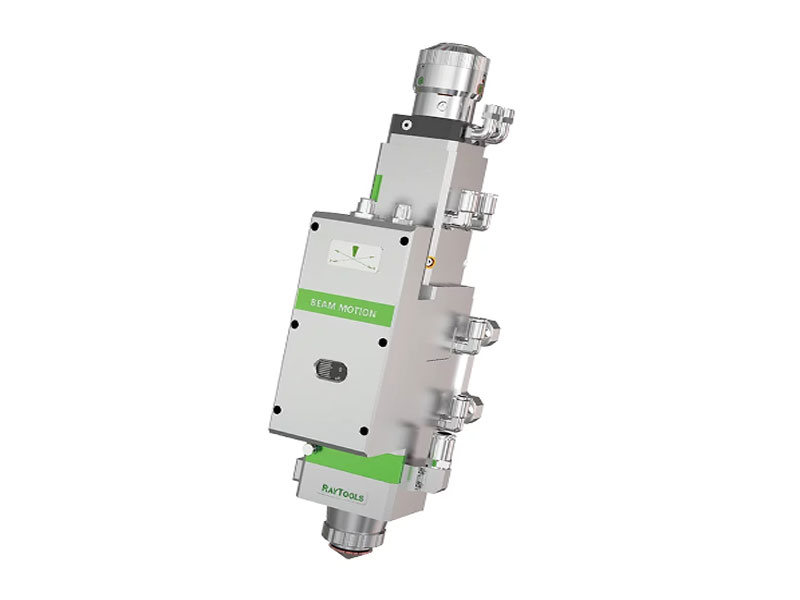

Laser Cutting Head
Auto-focus laser cutting head minimizes human intervention, includes multiple protective lenses for effective collimating lens protection. Highly adaptable, compatible with QBH and QD optical fiber interfaces, suitable for use with various mainstream lasers.

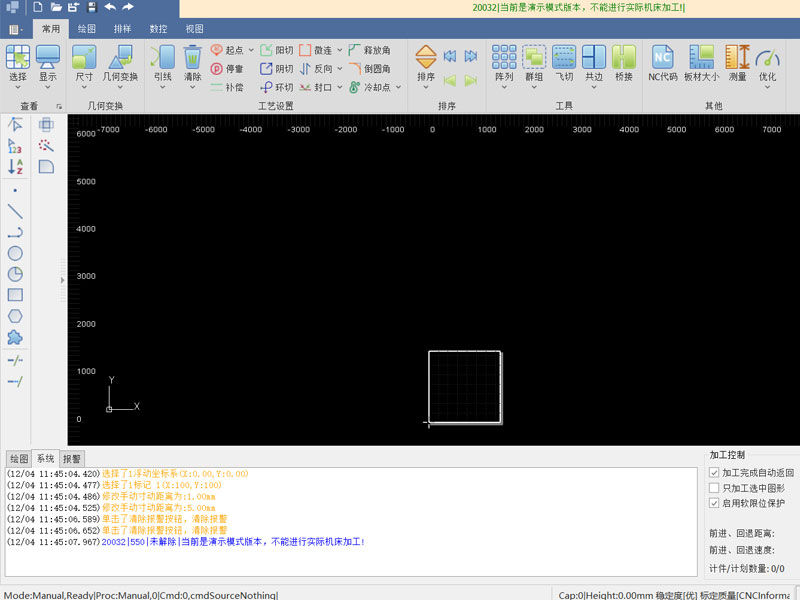

Control systems
The laser cutting equipment features a modern intelligent control system that allows for precise control of the cutting process using predetermined parameters. Integration with the feeding laser cutting system minimizes manual operation and reduces the risk of errors.

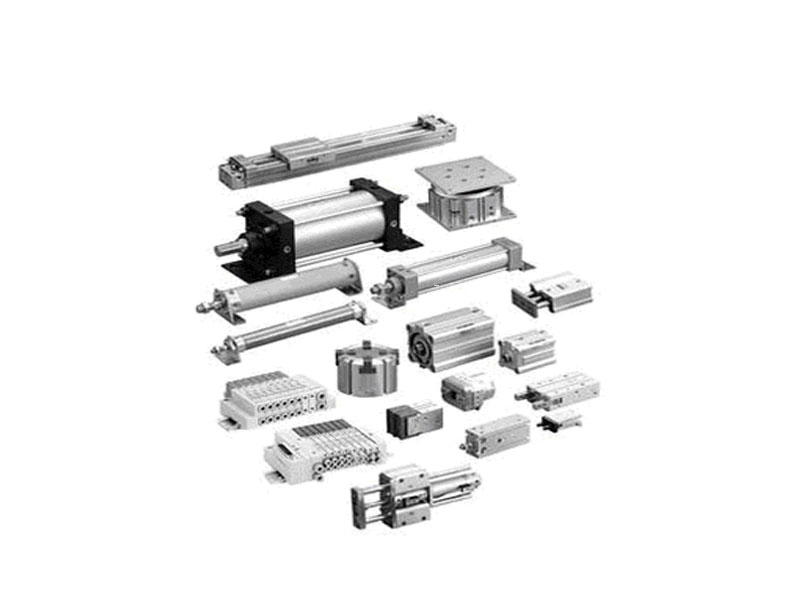

SMC Pneumatic Components
SMC pneumatic components are widely utilized in various fields such as industrial automation, robotics, aviation, automobile manufacturing, electronic appliances, and more. They are known for their exceptional reliability, superior performance, and well-designed features.
Cutting Effect
Our compact precision laser cutters are capable of cutting a diverse range of materials including metal, brass, silver, stainless steel, acrylic, wood, leather, paper, and more.
