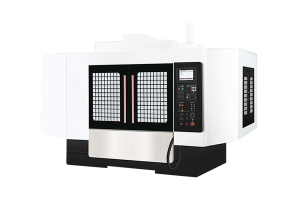

TC840
The high-speed drilling and tapping center TC840 machine tool is a machine that adopts a mechatronics integrated design, with a stylish and generous appearance, capable of performing precision cutting. Once the workpiece is clamped, the machine can automatically and continuously complete various processes such as milling, drilling, boring, reaming, tapping, countersinking, and threading.
This machine is suitable for the processing of a variety of complex parts including medium and small-sized box-type, plate-type, disc-type, and shell-type parts. It is widely used in industries such as 3C products, IT equipment, optical equipment, medical devices, and aluminum alloy products.
Product overview
- Machine Structure: The machine tool adopts a column-fixed, cross-slider mobile structure. The X, Y, and Z axes use linear roller guides, providing the machine with high rigidity, stability, and reliability. The large-capacity fully enclosed protective design is aesthetically pleasing and facilitates easy operation and maintenance.
- Spindle Unit: Utilizing a high-speed spindle unit with a BT30 specification spindle equipped with central air blowing functionality.
- Tool Magazine: The tool magazine employs an arm-type tool changing system known for its reliability and stable performance. The tool magazine has a capacity of 21 tools and allows for quick tool changes.
- Drive System: The three-axis motors and high-precision ball screws are directly linked for improved transmission rigidity and positioning accuracy. All three linear axes use linear roller guides, ensuring minimal vibration during high-speed feed rates and no creeping during low-speed feed rates.
Parameter
Basic parameters
| Name | Unit | Parameter | |
| Range of work | Triaxial stroke (X / Y / Z) | mm | 800/400/300 |
| The distance from the main nose to the working top | mm | 150~450 | |
| Workingbench | Bench size (length and width) | mm | 900×400 |
| Maximum carrying capacity | kg | 300 | |
| T-type groove (slot number, slot width spacing) | 3×14×120 | ||
| Spindle | Spindle diameter / cone hole | mm | φ100/BT30 |
| main shaft speed | rpm | 20000 | |
| Power of spindle motor | kW | 3.7/5.5 | |
| Speed | Fast moving speed (X / Y / Z axis) | m/min | 48/48/48 |
| Cut into give speed | m/min | 10/10/10 | |
| Tool magazine | Number of knives | grasp | 21 |
| Tool maximum diameter / length / weight of | φ60mm/200mm/3kg | ||
| Maximum diameter (full / adjacent) | mm | 60/80 | |
| Tool exchange time (knife-knife) | S | 1.3 | |
| Machine tool accuracy | Positioning accuracy (X / Y / Z) | mm | 0.008 |
| Repeat positioning accuracy (X / Y / Z) | mm | 0.005 | |
| Else | Specification of straight-line rolling guide gauge (X / Y / Z) | mm | 30/30/35 |
| Ball screw specification (X / Y / Z) | mm | 32/32/32 | |
| Servo motor specification (X / Y / Z) | N.m | 9/9/22.5 | |
| Gas source / air pressure | 280L/min 6~8bar | ||
| Total electrical capacity of the machine tool | KVA | 15 | |
| Machine tool external type size (XYZ) | mm | 2200×2600×2700 | |
| Machine tool weight (about) | kg | 3500 | |
Main configuration of the machine tools
| Order number | Name | Quantity | Remarks |
| 1 | The Mitsubishi M80B CNC system | 1 | |
| 2 | Hand-held operating unit | 1 | |
| 3 | Arm knife library | 1 | 2 1 Tools |
| 4 | Automatic lubrication system | 1 | |
| 5 | Tri coloured lantern | 1 | |
| 6 | Spindle blowing device | 1 | |
| 7 | Air curtain protection | 1 | |
| 8 | headlamp | 1 | |
| 9 | Random attachment | 1 | |
| 10 | Random complete set of standard technical documents | 1 |
