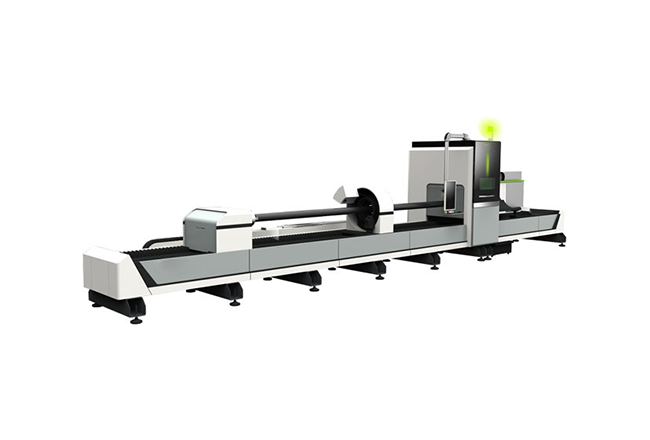

Three-chuck Fiber Laser Tube Cutter
- Warranty : 1 Year for machinery warranty
- Availability : On Stock
- WhatsApp : +86-13295238763
- Wechat : +86-13295238763
- Email : cncitd@minnuo.com
- (your request will be responsed within 1 hour.)
Three-chuck Fiber Laser Tube Cutter description
- Laser Cutting Power Options: 12 kW, 15 kW, 20 kW, 30 kW
- Models Available in Various Dimensions: 12025, 14025, 6025, 8025
- Suitable Materials for Laser Cutting: Aluminum Plate, Brass, Carbon Steel
- The high-power fiber laser cutter machine is designed for fiber laser cutting equipment with a power rating of 10,000 watts or higher. It features a full-protection exchange table laser cutting system, making it ideal for high-power fiber lasers above 10,000 watts. With its increased cutting thickness and faster speed, this machine delivers exceptional performance.
- To ensure safety and cleanliness, the machine is equipped with a fully protected protective cover, promoting a clean and hygienic working environment. It also includes glass protective windows to safeguard the operator’s eyes. Furthermore, it incorporates a dust recovery and purification treatment system that is both environmentally friendly and aesthetically pleasing.
- For enhanced productivity, the machine utilizes double exchange platforms and supports automatic loading and unloading processes. This feature not only saves labor but also significantly improves efficiency.
Parameter
| Parameter | Value |
| Model | Can Be Customized 9 Meters Or 12 Meters |
| Cutting Range | 6000mm*200mm |
| Pipe Processing Range | 6000mm*Φ20-180mm |
| Thickness Of The Cutting | ≤5mm |
| X/Y Axis Positioning Accuracy | ±0.03mm |
| Maximum Acceleration | 1G |
| Maximum Positioning Speed Of W Axis | 300rpm |
| Laser Power | 1000w/1500w/2000w/3000w/4000w |
| Power Demand | 380V/50HZ/60HZ |
| Control System | POWER AUTOMATION / Germany |
| X/Y Axis Repeat Positioning Accuracy | ±0.03mm |
| Side Length Of Square Tube | 1515mm-150150mm |
Composition

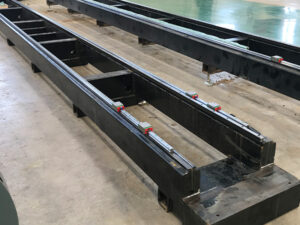

Heavy-duty machine bed
The XYZ axis motion mechanism, including the cutting work platform.

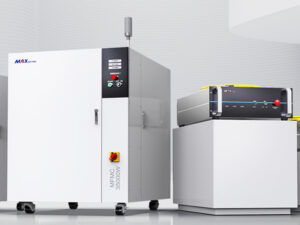

Laser Generator
The laser light source is the pivotal component of the CNC laser pipe cutting machine.

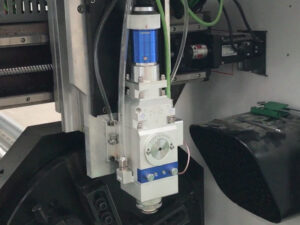

Cutting Head
The key components of a CNC laser pipe cutter include the cavity, focusing lens seat, focusing mirror, capacitive sensor, and auxiliary gas nozzle.

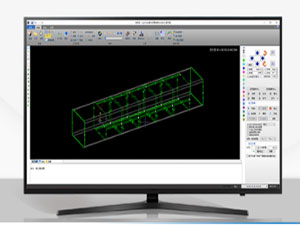

Control System
The machine tool controls the movement of the X, Y, and Z axes, as well as the laser power output.
Water Chiller
It is used to cool and protect the fiber laser of the CNC tube cutting machine.

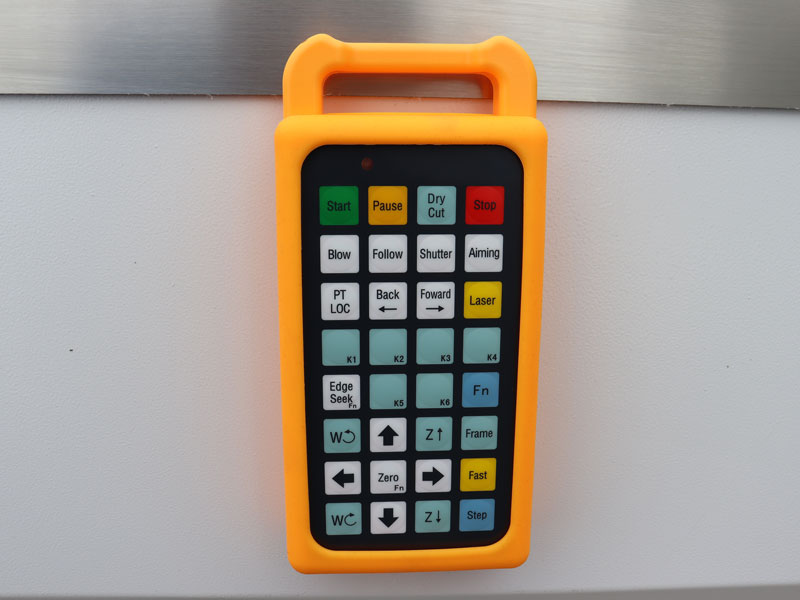

Operating Handle
The remote control handle for the fiber laser pipe cutter is user-friendly and allows for easy operation. It enables remote control of various operations, including cutting, perforating, moving, calibrating, and emergency stop.

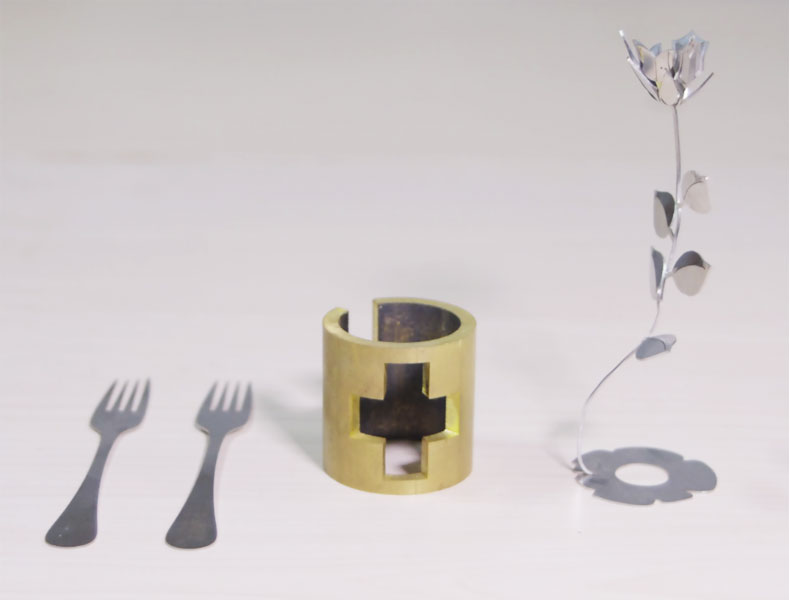

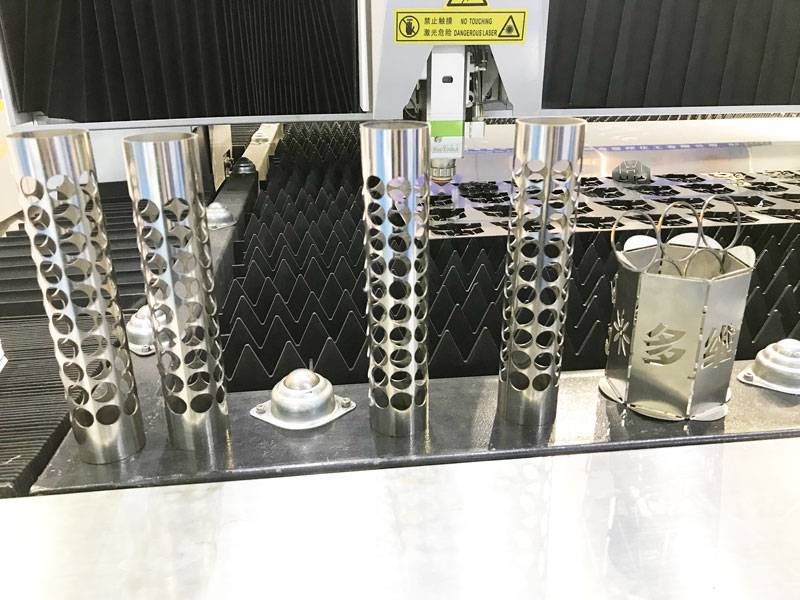

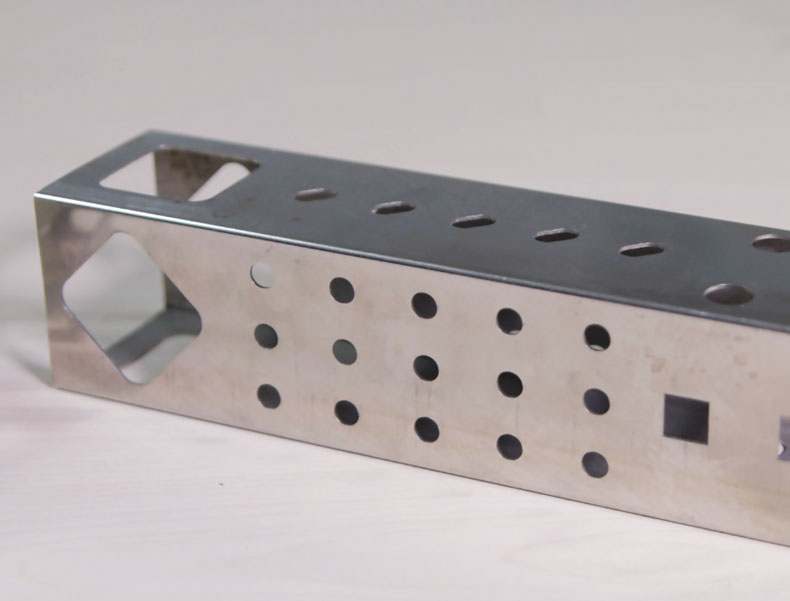

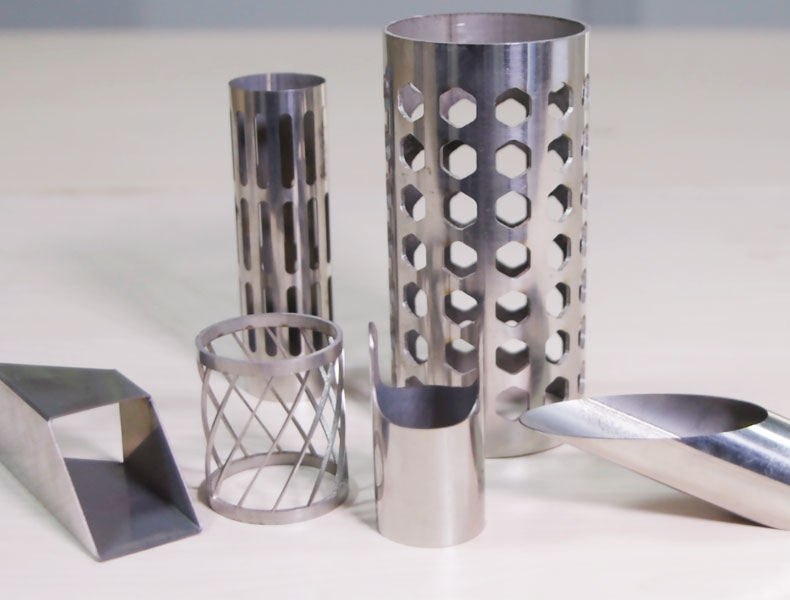

Cutting Effect
Various types of pipes, including round pipes, square pipes, flat pipes, U-shaped pipes, channel steel, and I-beams, can be processed with a maximum length of 6 meters.
For round tubes, the diameter of the circumscribed circle of the workpiece ranges from 15mm to 230mm.
Similarly, for square tubes, the diameter of the circumscribed circle of the workpiece also ranges from 15mm to 230mm.
