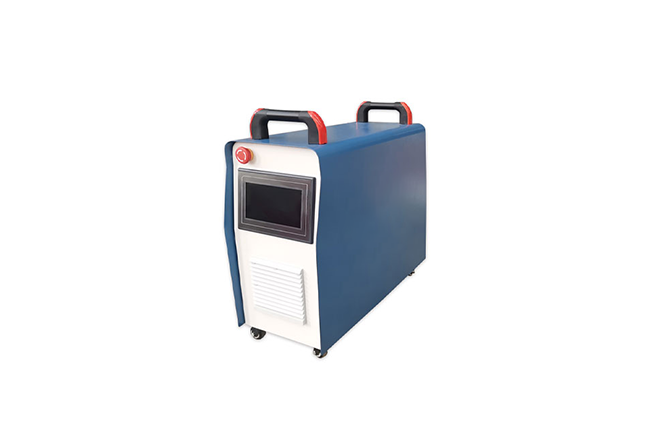

Portable Pulse Laser Cleaning Machine
- Warranty : 1 Year for machinery warranty
- Availability : On Stock
- WhatsApp : +86-13295238763
- Wechat : +86-13295238763
- Email : cncitd@minnuo.com
- (your request will be responsed within 1 hour.)
Portable Pulse Laser Cleaning Machine description
- Power size:1000w 1500w 2000w
- Appearance: customized
- Laser cleaning technology utilizes high-frequency and high-energy laser pulses to irradiate the workpiece’s surface. The absorbed energy causes the contamination layer and coatings to evaporate or peel off, effectively removing oxides, rust, and paint marks. This fast and efficient cleaning method does not damage the substrate. Laser cleaning machines are essential tools in various industries as they effectively remove contaminants such as resin, paint, oil, rust, coatings, plating, oxide layers, and other pollutants from object surfaces.
Parameter
| Specification | Value |
| Laser Power (W) | 1000W 1500W 2000W |
| Laser Type | Fiber |
| Cooling Method | Air |
| Fiber Length | 10m |
| Pulse Width | 90-110NS/10KHz 120-160/20KHz- 50KHz |
| Interface Type | QBH |
| Equipment Power Demand | 220V/380V |
| Scanning Speed | 4000mm/S - 15mm/S |
| Argon or Nitrogen Self-Protection | 20ml/Min |
| Suitable Materials | Stainless Steel, Carbon Steel, Galvanized Sheet, Aluminum, Aluminum Alloy, Brass |
Composition
- Battery Charger
- Large Capacity Battery
- Operating Display Storage Bag
- Special Protective Glasses
- Power Module
- Laser Rust Removal Gun
- Power Cable
- Laser Rust Removal Gun Bag

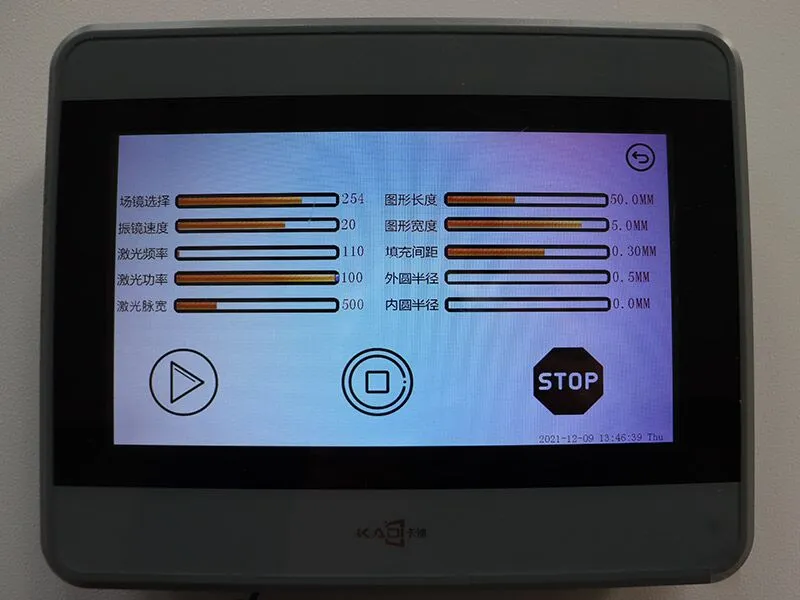

Control System
Integrated electronic control part saves space. Dedicated laser cleaning host control system with user-friendly interface for easy operation. Flexible parameter settings for high-performance laser and galvanometer control.

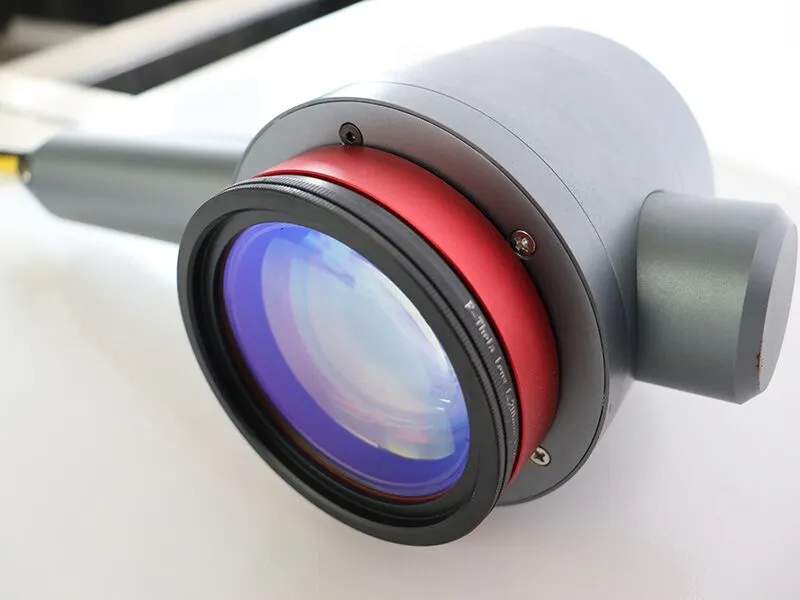

Laser Galvanometer
The high-performance laser galvanometer offers fast scanning speed and high precision. When combined with a professional control system, it can effectively meet various requirements for laser cleaning applications.
Fiber Laser
Continuous operation is effortless with the system, and the high-speed optical fiber transmission allows for easy integration while maintaining an ideal beam quality. The system also boasts low maintenance cost and high photoelectric conversion efficiency, resulting in minimal energy consumption.

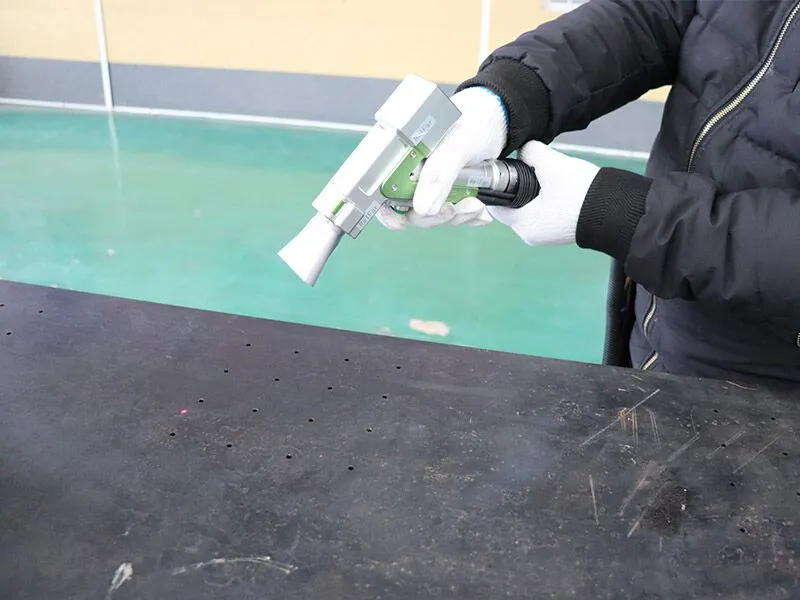

Laser Cleaning Gun
The handheld part is lightweight and ergonomic, allowing for easy operation and integration with a manipulator for automatic cleaning. The laser cleaning system is stable and requires minimal maintenance and repairs, offering convenient after-sales support.
Cleaning Effect
Our pulse laser rust removal is a fast, efficient, and eco-friendly alternative to traditional cleaning methods. It works on a wide range of surfaces and is perfect for industrial and commercial applications.
